DC182-780L Albright 150A 24V DC - INT Monoblock Motor Reversing Contactor
Feel free to share word of our service:
..or just ask one of our experts

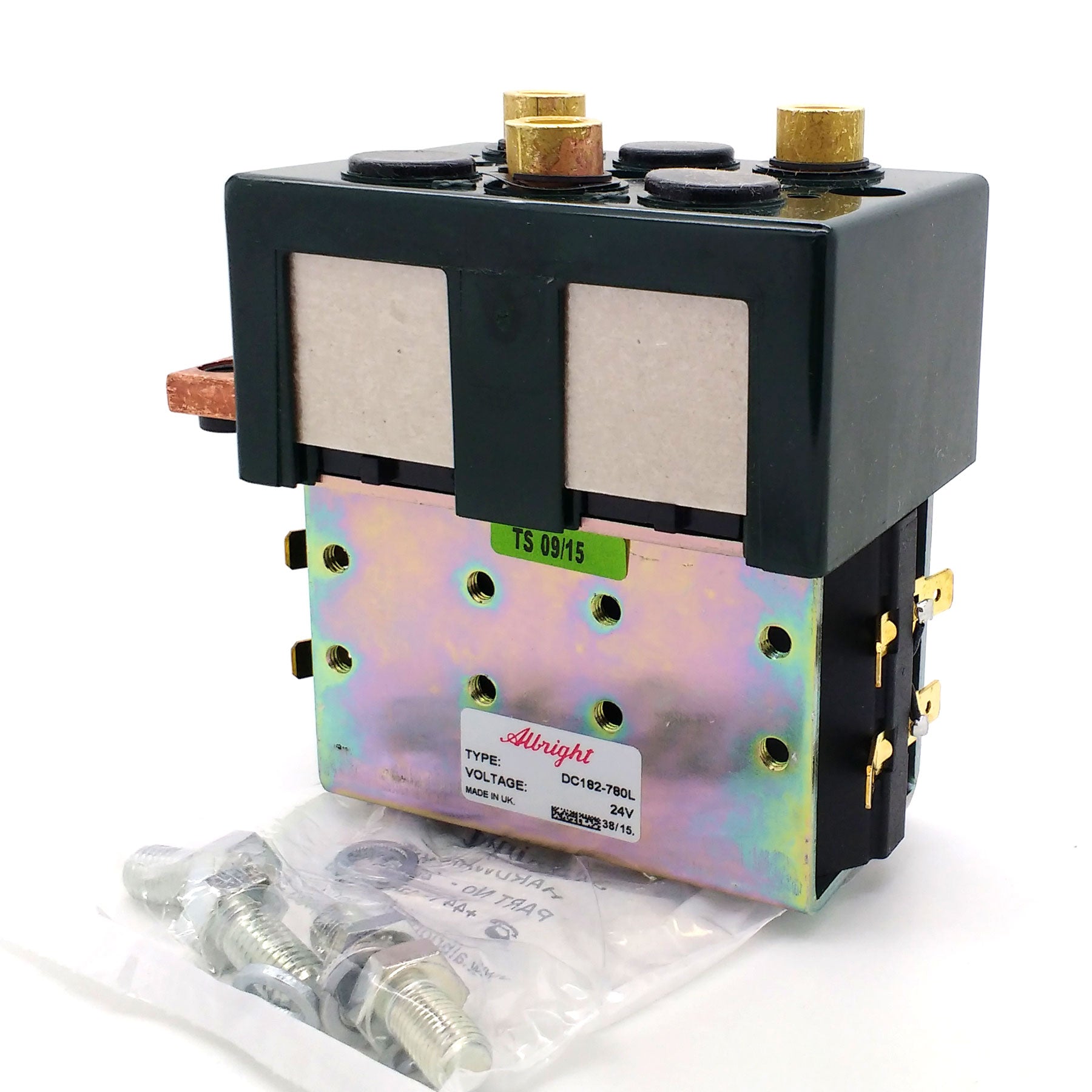

About the DC182-780L Motor Reversing Solenoid
Very Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
