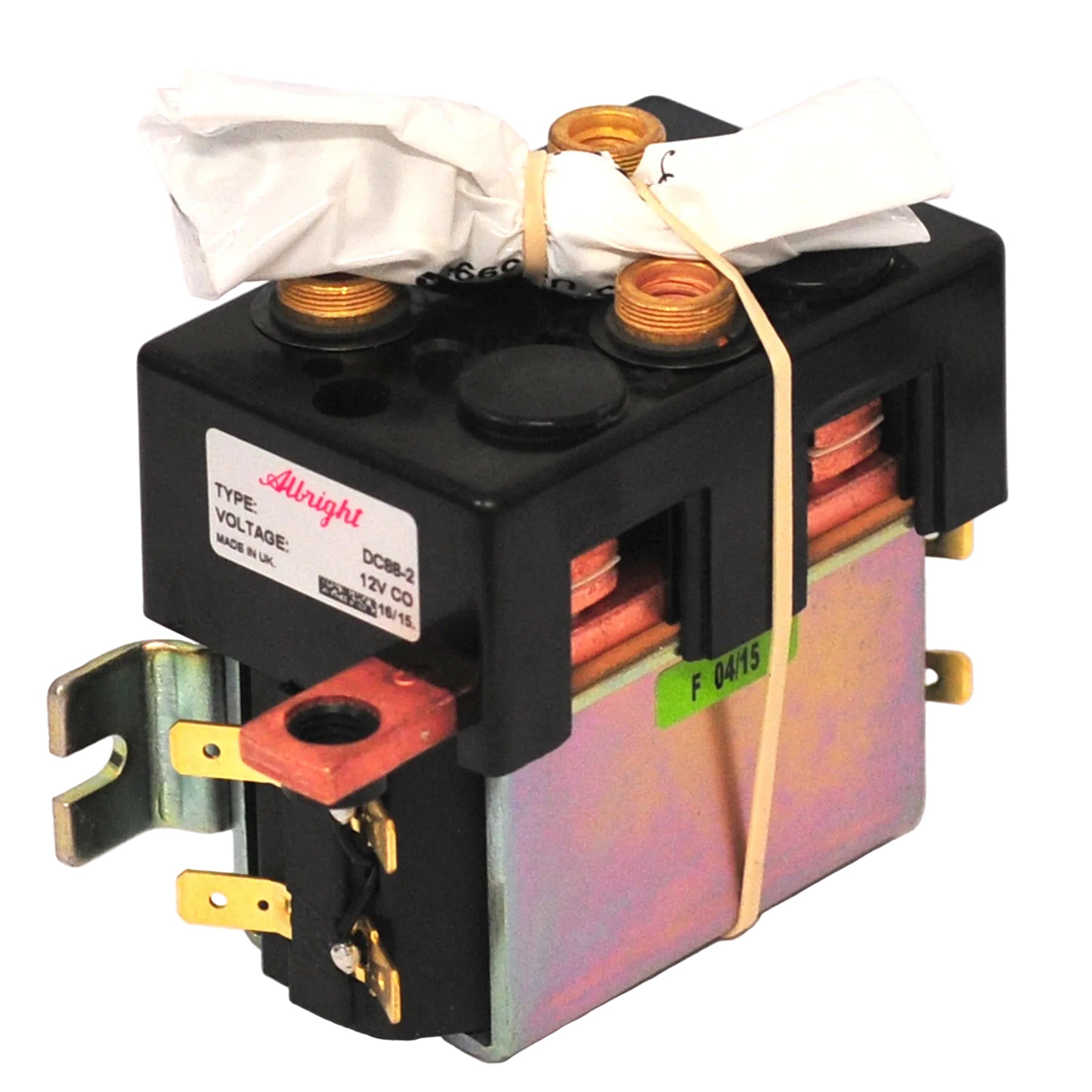

DC88-2 Albright 100A/100A 12V DC - CO Monoblock Motor Reversing Contactor

About the DC88-2 Motor Reversing Solenoid

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

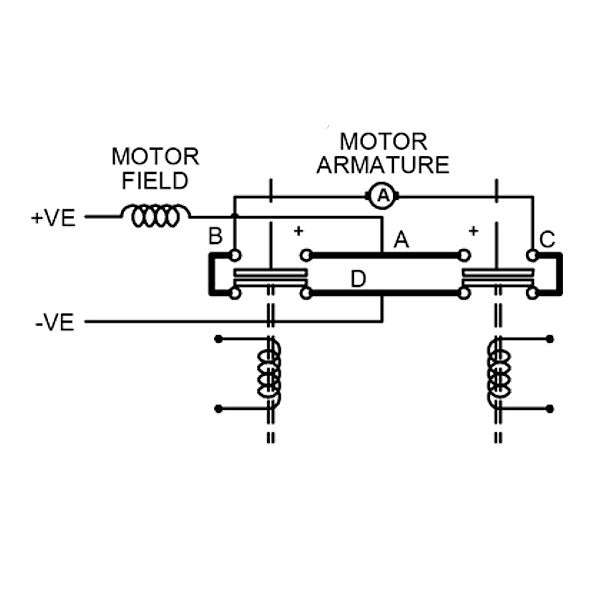

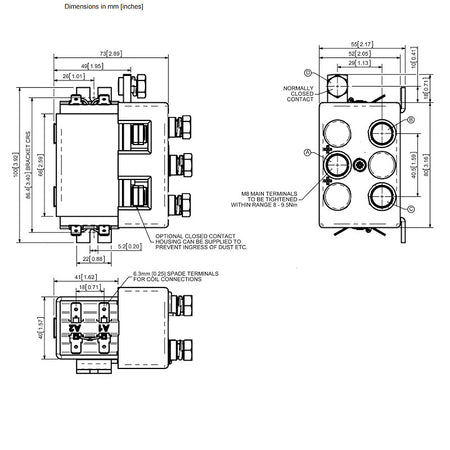

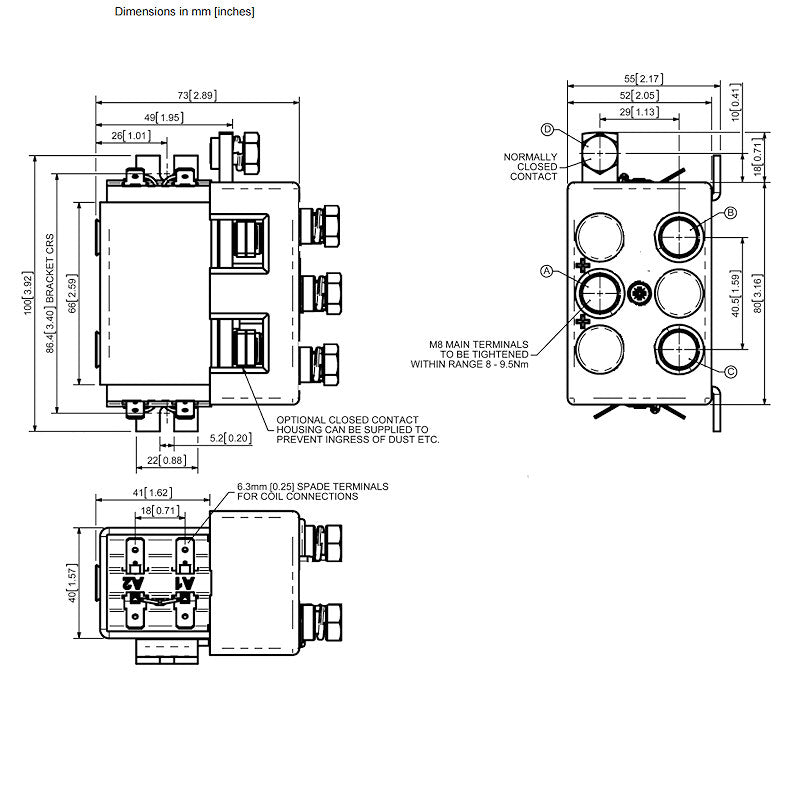

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. This version of the DC88 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
